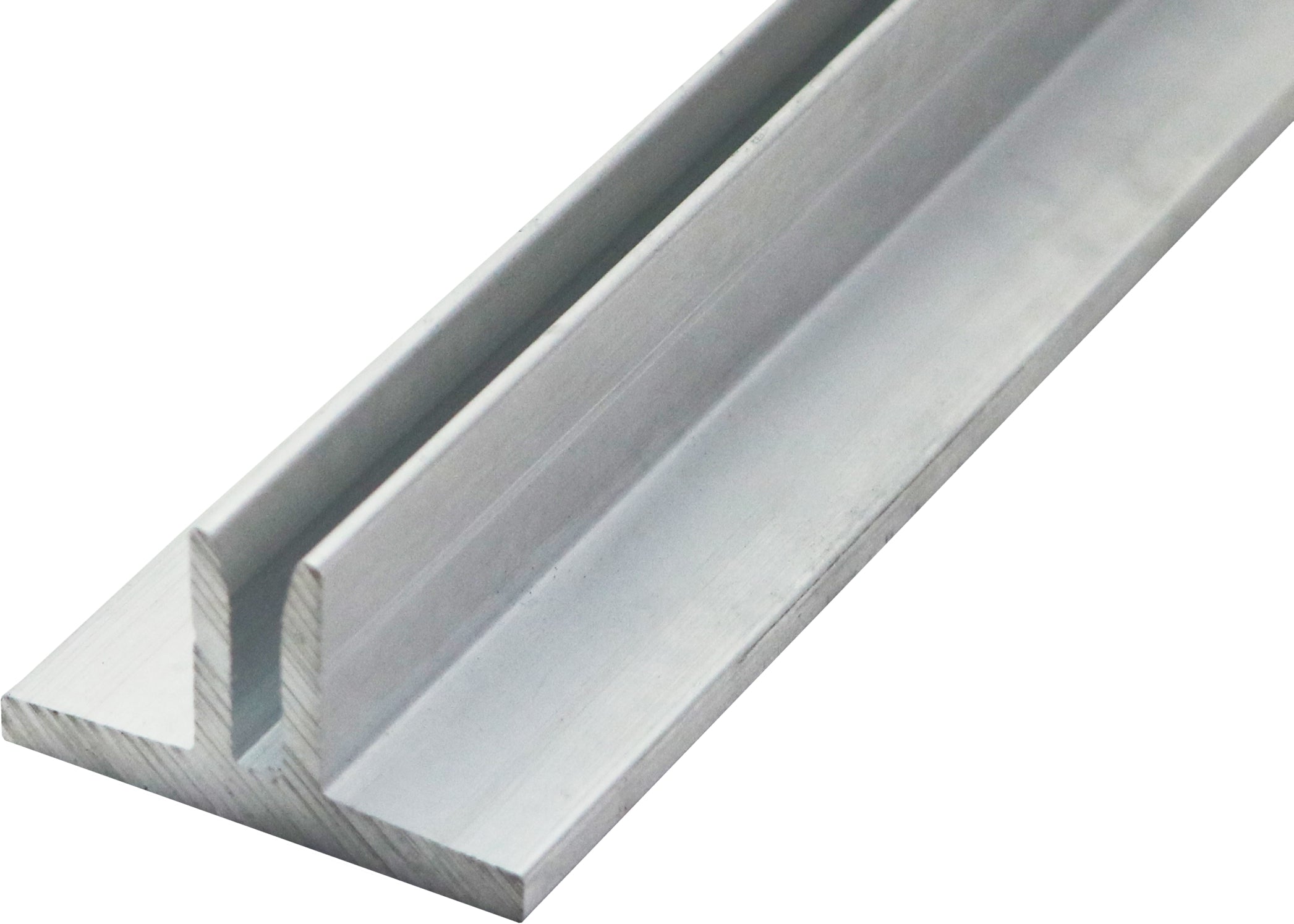

ALL SIGN SYSTEMS have developed 2 Tee section extrusions for use in the construction of non standard size Streetname and Cantilever (End) mounted Directional and Information signs. The Tee Section is secured to the top and bottom of the panel. In cases where the sign is exposed to adverse conditions a third section is secured to the edge of the sign between the brackets. Both extrusions have side vee-grooves for easy rivet hole location.We recommend that the first hole is drilled 75mm from the bracket end of the tee and thereafter at maximum 300mm centres. Double Tee Extrusion is recommended for signs up to 1500mm long or 0.72m2. Accepts signs plate materials up to 3.0mm in thickness. The ASOSBLM Universal Aluminium Offset Bracket is designed for use with signs constructed using Double Tee section: - 2 brackets are required for signs up to 1200mm long or 0.56m2 - 4 brackets (2 each top and bottom) are required for signs 1200mm to 1500mm long or 0.56 to 0.72m2.
$103.50
ALL SIGN SYSTEMS have developed 2 Tee section extrusions for use in the construction of non standard size Streetname and Cantilever (End) mounted Directional and Information signs. The Tee Section is secured to the top and bottom of the panel. In cases where the sign is exposed to adverse conditions a third section is secured to the edge of the sign between the brackets. Both extrusions have side vee-grooves for easy rivet hole location.We recommend that the first hole is drilled 75mm from the bracket end of the tee and thereafter at maximum 300mm centres. Mini Tee Extrusion is recommended for use on signs up to 450mm long. Accepts sign plate materials up to 3.0mm in thickness thickness. The ASOSBMM Mini Aluminium Offset Bracket is designed for use with signs constructed using Mini Tee section. 2 brackets are required, 1 each to the top and bottom of the sign.
$55.20
