Street Name Sign Brackets

AUO060MCH, 60MM ALUM BKT 2 HOLE/50 (S)

60MM ALUM BKT

The ALL SIGN SYSTEMS Bracket range includes Aluminium Uni-Clamps specifically designed to be coupled with the ALL SIGN SYSTEMS Offset Brackets for 60mm and 76mm Aluminium Fluted Poles and Steel Poles to eliminate sign rotation. The Uni-Clamp Bracket is available in a single sign configuration and Back to Back for double offset signs. Stainless steel banding is not recommended. Ensure bolts are torqued to 12Nm.

$17.25

AUOB060M, 60MM ALUM BKT B TO B 2 HOLE/50 (S)

60MM ALUM BKT BACK TO BACK

The ALL SIGN SYSTEMS AUO Back to Back Brackets work in the same way as AUO Brackets but are designed for mounting signs back to back or street name blade extrusion end to end. Ensure bolts are torqued to 12Nm.

$20.70

AUO076MCH, 76MM ALUM BKT 2 HOLE/50 (S)

76MM ALUM BKT

The ALL SIGN SYSTEMS Bracket range includes Aluminium Uni-Clamps specifically designed to be coupled with the ALL SIGN SYSTEMS Offset Brackets for 60mm and 76mm Aluminium Fluted Poles and Steel Poles to eliminate sign rotation. The Uni-Clamp Bracket is available in a single sign configuration and Back to Back for double offset signs. Stainless steel banding is not recommended. Ensure bolts are torqued to 12Nm.

$18.40

AUOB076M, 76MM ALUM BKT B TO B 2 HOLE/50 (S)

76MM ALUM BKT BACK TO BACK

The ALL SIGN SYSTEMS AUO Back to Back Brackets work in the same way as AUO Brackets but are designed for mounting signs back to back or street name blade extrusion end to end. Ensure bolts are torqued to 12Nm.

$21.85

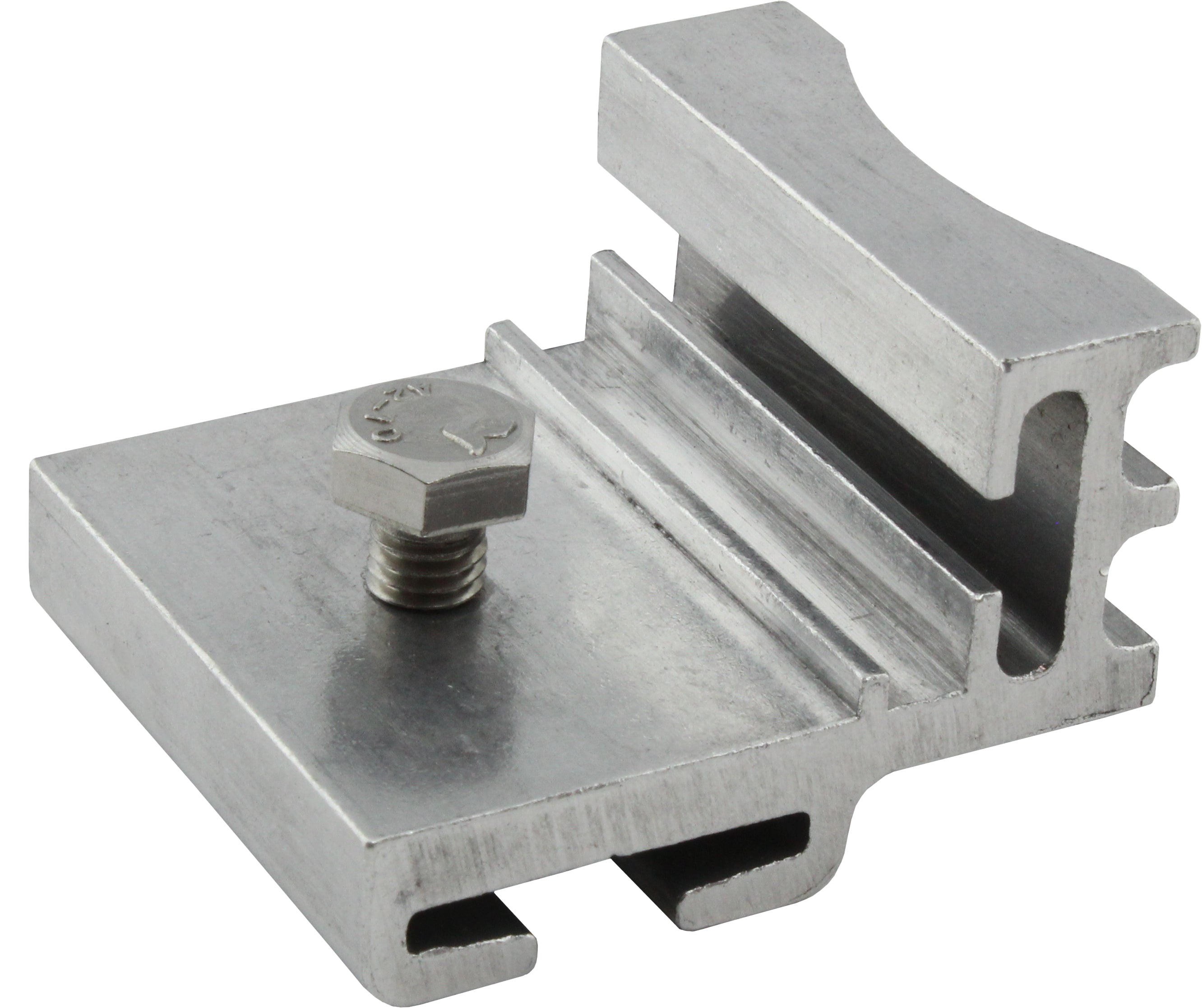

OSBMNZ-01, SIGNFIX MID MOUNT BKT/100 -C/W M8X10 S/S HEX SCREWS

MID MOUNT BKT - C/W M8X10 S/S HEX SCREWS

The ALL SIGN SYSTEMS Mid Mount Brackets are designed for mid mounting Street Name Blade Extrusion. Brackets are installed at the top and bottom of the Extrusion and then used in-conjunction with either ALL SIGN SYSTEMS Stainless Steel Banding or AUO brackets.

$14.03

OSBMM, MINI TEE OFFSET BKT 6HOLES/100

MINI TEE OFFSET BKT

The ALL SIGN SYSTEMS Mini Tee & Universal Offset Brackets are used in conjunction with Mini and Double Extrusion for manufacturing custom made signage. Mini Tee and Mini Offset Brackets are used for signs under 0.56m2 . Double Tee and Universal Offset Brackets are signs between 0.56m2 and 0.72m2.

$14.37

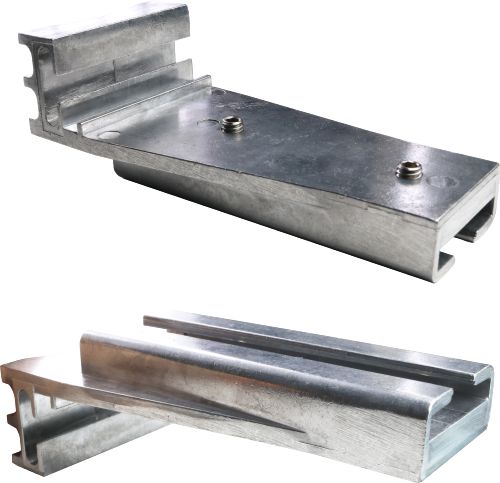

ASSNBKT02, Offset Aluminium Street Name Bracket

Offset Aluminium Street Name Bracket

The ALL SIGN SYSTEMS Slide-on Offset Bracket is designed for end mounting Street Name Blade Extrusion up to a maximum size of 0.24m2. Brackets are installed top and bottom of the extrusion and then used in-conjunction with either ALL SIGN SYSTEMS Stainless Steel Banding or AUO brackets. The ALL SIGN SYSTEMS Slide-on Offset Bracket is designed and warranted for sign blades not exceeding 0.24 m2. For example, a. 200mm deep x 1200mm long sign b. 225mm deep x 1075mm long sign or c. 250mm deep x 960mm long sign. Street Name Signs over this limitation should be single sided mid mounted. The ALL SIGN SYSTEMS Slide-On Offset Bracket should be torqued to 12Nm using a socket style wrench.

$16.10

TD1010, TD BKT FOR TIMBER POST - SFX

TD1010 BKT FOR TIMBER POST

The ALL SIGN SYSTEMS Timber Post Slide on Brackets are similar to the standard Slide on Offset Bracket but specifically used for installing Street Name Blade Extrusion onto square Timber Posts. The bracket is secured with either a coach bolt or a bolt through the post (not supplied). Signs should not exceed 0.20m2 therefore (Note the product is not suitable for extreme / high wind applications). • 200mm deep x 1000mm long sign • 225mm deep x 880mm long sign • 250mm deep x 800mm long sign Street Name Signs over this limitation should be single sided mid mounted.

$8.16

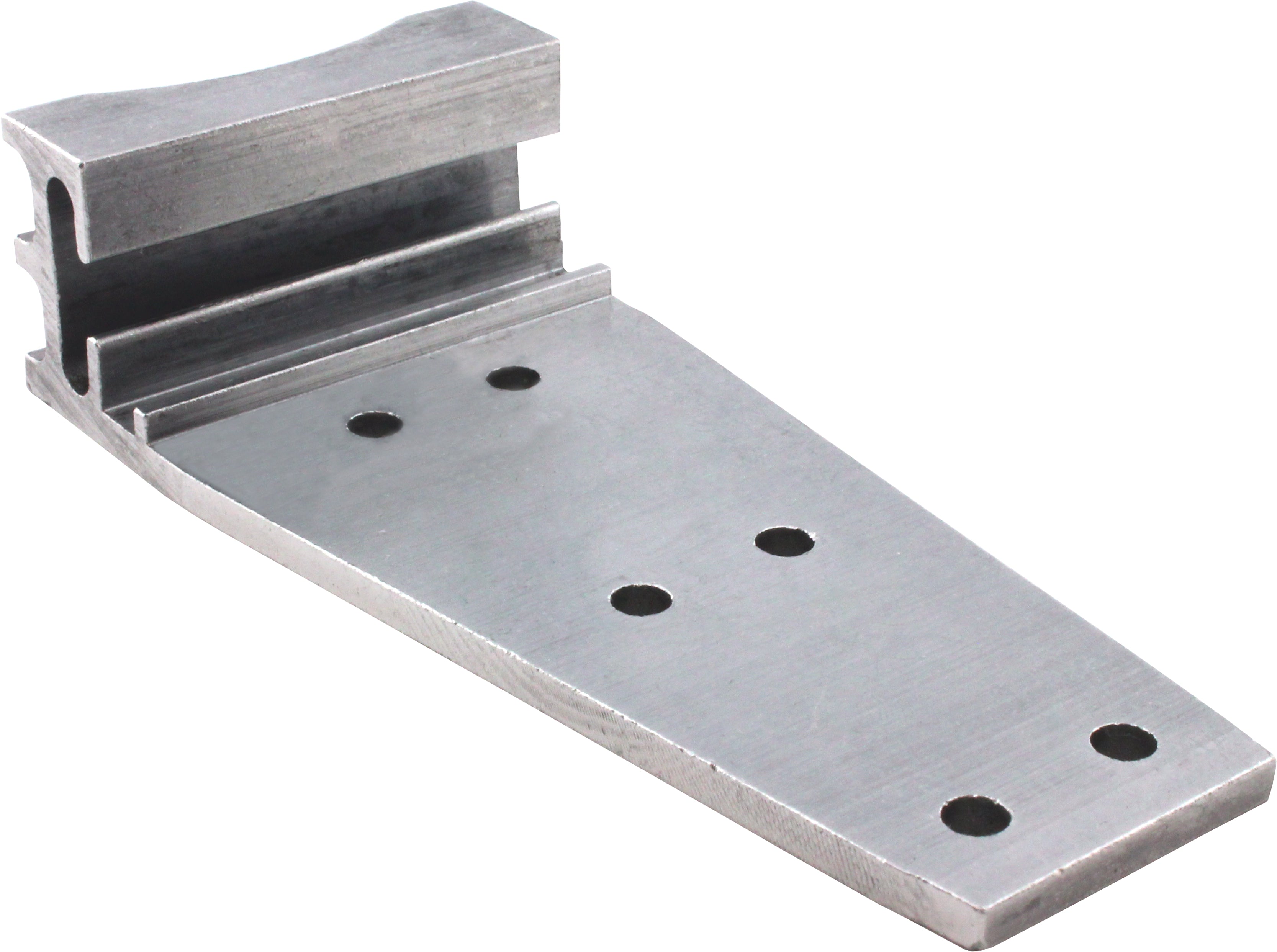

OSBLM, Universal Offset Bkt/100 For Double Tee

Universal Offset Bkt (Double Tee)

The ALL SIGN SYSTEMS Mini Tee & Universal Offset Brackets are used in conjunction with Mini and Double Extrusion for manufacturing custom made signage. Mini Tee and Mini Offset Brackets are used for signs under 0.56m2 . Double Tee and Universal Offset Brackets are signs between 0.56m2 and 0.72m2.

$14.03
